ER Systems

Corrosion Probe Systems offer continuous, real-time monitoring of corrosion within pipelines, vessels, separators, and other process equipment. Installed via 2-inch Intrusive Access Fittings, these probes enable operators to track corrosion without shutting down operations, optimize corrosion inhibitor dosing, and respond promptly to changes in process conditions.

ER Probes

ER Instruments

Electrical Resistance (ER) Probes

(For all mediums, including non-conductive fluids)

ER probes measure changes in the electrical resistance of a thin metal element as it corrodes, providing a direct indication of metal loss for long-term corrosion monitoring.

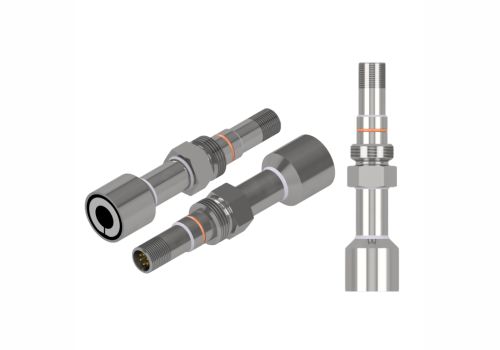

1. ER Flush Probes

Key Features :

Element sits flush with the internal pipe wall—no protrusion.
Prevents mechanical damage during pigging.
Ideal for piggable lines.
Element thickness range: 5 mil to 40 mil.
Excellent for bottom-of-line (BOL) corrosion where water tends to settles.

Applications :

For Pipeline Pigging Zones
For Gas Production Lines
For Water Film Corrosion

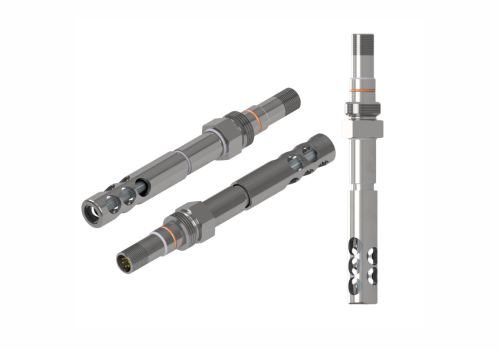

2. Cylindrical ER Probes

Key Features :

Cylindrical sensing element protrudes into the fluid stream.
Greater surface area for more representative readings.
Ideal for non-piggable lines.
Element thickness range: 10 mil to 80 mil.
Highly sensitive for multiphase and turbulent flow.

Applications :

For Multiphasic Crude Systems
For Produced Water & Wet Gas
For Elbows, Tees, Manifolds Where Velocities Varies

Technical Features :

Pressure rating: 6000 PSI (41.3 MPa).
Temperature rating: Up to 260°C (500°F).
Materials: Carbon Steel, 304/316 SS, Duplex, Inconel, Monel, and Custom alloys.
Welded seal or Ryton® sealed designs.
Compatible with Retriever + Service Valve.
Available in Flush & Cylindrical formats.
Optional velocity shields for high-flow systems.

Advantages :

Safe probe retrieval under full system pressure
High accuracy even under varying flow regimes
Suitable for all corrosive environments, including sour service

Instrumentation, Data Logging & Retrieval Systems

(For Intrusive Corrosion Monitoring – ER System)

A complete suite of electronic instruments for configuring, reading, logging, and transmitting corrosion data from ER and LPR probes. Supports routine inspections, long-term monitoring, and smooth integration with plant automation systems.

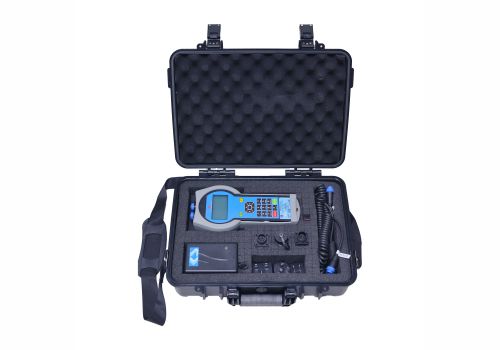

1. Portable Handheld Data Logger

A rugged and intrinsically safe handheld unit used by field technicians during routine site monitoring

Key Features :

Reads ER, LPR & Temperature signals
High-accuracy electronics for stable and repeatable readings
Stores thousands of data points for later download
Rechargeable battery & IP-rated housing
Configures field-mounted data loggers and transmitters
Suitable for hazardous areas

Applications :

For Field Data Collection
For Spot Corrosion Checks
For Configuration of Installed Monitoring Equipment

2. Field-Mounted ER
Data Logger

A permanently installed logger for continuous corrosion data recording

Key Features :

Single or multi-channel configurations
Logs ER, LPR, and temperature over long periods
Weatherproof enclosures (IP66 / IP68)
Suitable for remote and offshore environments

Applications :

For Historical Trending
For Remote or Unmanned Sites
For Long-Term Corrosion Rate Profiling

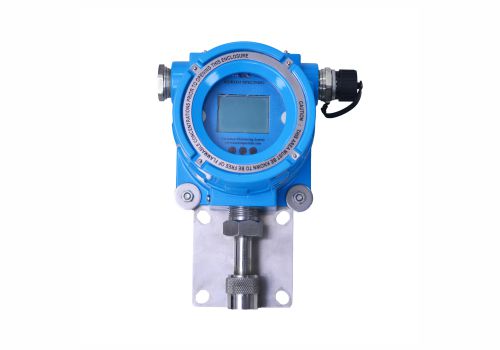

3. Field-Mounted ER Transmitter

An industrial transmitter designed to feed real-time corrosion data directly into plant-automation systems

Key Features :

Instant integration into DCS/SCADA/PLC
Real-time corrosion-rate alarms
Suitable for pipelines, vessels, and critical assets

Applications :

For Real-Time Corrosion Monitoring Of Pipelines, Flowlines, Vessels, Tanks, And Other Critical Assets
For Use In Oil & Gas, Petrochemical, Chemical, And Power Plants
For Seamless Integration With DCS, SCADA, And PLC Systems
For Automated Monitoring and Control
For Early Detection, Trending, And Alarm-Based Corrosion Management
